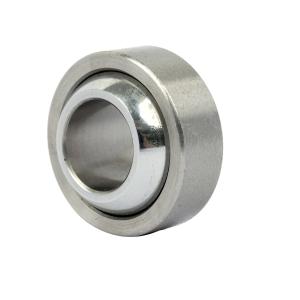

COM Series Spherical Plain Bearings

  • 1
  • 2

Brand Name : SGC

Model Number : COM Series

Place of Origin : Fuzhou, China

MOQ : 500 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 200000PCS per month

Delivery Time : 45 days

Packaging Details : 1*1 Plastic Bag+Individual Box+Outer Carton+Pallet

Product name : Two-Piece Commercial Spherical Plain Bearing

Ball : GCr15 Bearing Steel，Chrome Plated, Heat Treated

Precision Rate : Precision Ground

Race : Carbon Steel, Heat Treated

Liner : PTFE Lined, Optional Metal-to-Metal

Application : low-load applications, such as alternator brackets, shifter rods, lift arm braces, throttle and clutch linkages

Sample : Available

Packing : As your requirement

OEM : Accept Customized Order

Contact Now

Commercial Spherical Plain Bearings with PTFE Liner and Chromoly Heat Treated Ball Eye Inch COM Series

PTFE Lined Type-Inch

• Race: Carbon Steel, Heat Treated, Hard Chrome Plated, Precision Ground
• Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
• Liner: PTFE Lined, Metal-to-Metal Optional

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.

Part Number Boundary Dimensions
(inch)		 Misalign.
Angle
aº

Radial
Static
Load

(lbs)

 Net Weight
(lbs)
Metal-to-Metal PTFE Lined B
+ .0015
- .0005		 D
+ .0000
- .0007		 T
± .005		 W
± .005		 0
Flat Dia.
Ref		 M
Cham.
Ref.		 Ball
Dia.
Ref.
COM2 - 0.165 0.4687 0.187 0.25 0.235 0.02 0.343 9 3,200 0.01
COM3 COM3T 0.19 0.5625 0.218 0.281 0.293 0.015 0.406 11 4,875 0.01
COM4 COM4T 0.25 0.6562 0.25 0.343 0.364 0.022 0.5 13.5 7,425 0.02
COM5 COM5T 0.3125 0.75 0.281 0.375 0.419 0.032 0.562 12 9,713 0.03
COM6 COM6T 0.375 0.8125 0.312 0.406 0.516 0.032 0.656 10 12,600 0.04
COM7 COM7T 0.4375 0.9062 0.343 0.437 0.53 0.032 0.687 8 14,180 0.05
COM8 COM8T 0.5 1 0.39 0.5 0.64 0.032 0.781 9.5 19,875 0.07
COM9 COM9T 0.5625 1.0937 0.437 0.562 0.71 0.032 0.875 9.5 24,945 0.09
COM10 COM10T 0.625 1.1875 0.5 0.625 0.78 0.032 0.968 8.5 31,920 0.11
COM12 COM12T 0.75 1.4375 0.593 0.75 0.92 0.044 1.187 9 47,880 0.2
COM12-757 - 0.757 1.4375 0.593 0.75 0.92 0.044 1.187 9 47,880 0.2
COM14 COM14T 0.875 1.5625 0.703 0.875 0.98 0.044 1.312 9.5 62,940 0.26
COM16 COM16T 1 1.75 0.797 1 1.118 0.044 1.5 10 82,800 0.39
HCOM16 HCOM16T 1 2 0.781 1 1.36 0.032 1.687 9 106,230 0.55
HCOM19 HCOM19T 1.1875 2.375 0.937 1.187 1.61 0.032 2 8.5 151,095 0.9
HCOM20 HCOM20T 1.25 2.375 0.937 1.187 1.61 0.032 2 8.5 151,095 0.9
HCOM24 HCOM24T 1.5 2.75 1.094 1.375 1.86 0.032 2.312 8.5 203,925 1.36
HCOM28 HCOM28T 1.75 3.125 1.25 1.562 2.11 0.044 2.625 8 264,555 1.95
HCOM32 HCOM32T 2 3.5 1.375 1.75 2.36 0.044 2.937 8.5 325,590 2.66

COM Series Spherical Plain Bearings

COM Series Spherical Plain BearingsCOM Series Spherical Plain Bearings
