NPB Narrow Spherical Plain Bearings And Rod Ends

  • 1
  • 2

Brand Name : SGC

Model Number : NPB Series

Place of Origin : Fuzhou, China

MOQ : 500 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 200000PCS per month

Delivery Time : 45 days

Packaging Details : 1*1 Plastic Bag+Individual Box+Outer Carton+Pallet

Product name : Narrow Spherical Bearing

Ball : GCr15 Bearing Steel，Chrome Plated, Heat Treated

Precision Rate : Precision Ground

Race : Carbon Steel, Heat Treated

Liner : PTFE Lined, Self-lubrication

Sample : Available

Packing : As your requirement

OEM : Accept Customized Order

Contact Now

Three-Piece Narrow Spherical Plain Bearings with Chrome Plated Heat Treated and PTFE Self-Lubrication NPB Series

PTFE Lined Type-Inch

• Race: Carbon Steel, Heat Treated, Hard Chrome Plated, Precision Ground
• Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
• Liner: PTFE Lined, Metal-to-Metal Optional

• Tolerance: This bearing has tighter tolerances than traditional rod end.

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.

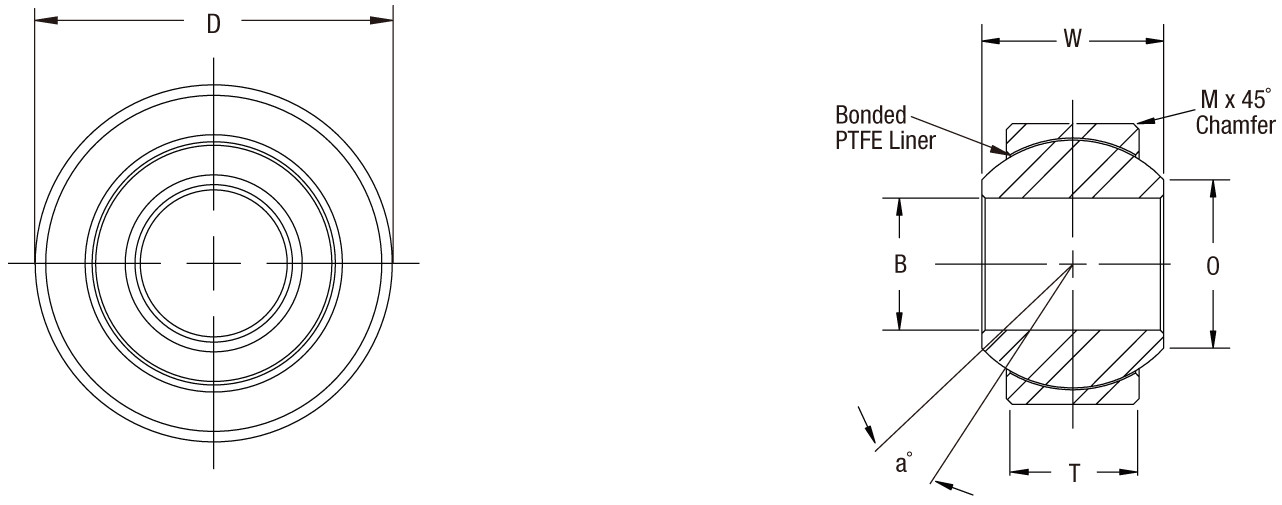

Part
Number		 Boundary Dimensions
(inch)		 Misalign.
Angle
aº		 Radial
Static
Load
(lbs)		 Ult. Axial
Static
Load
(lbs)		 No Load
Breakawa
Torque In.
(lbs)		 Net Weight
(lbs)
B
+ .0000
- .0005		 D
+ .0000
- .0007		 T
± .005		 W
+ .000
- .005		 0
Flat Dia.
Ref.		 M
Cham.
Ref.		 Ball
Dia.
Ref
NPB3T 0.19 0.5625 0.218 0.281 0.293 0.015 0.406 10 3975 150 0.25-5 0.02
NPB4T 0.25 0.6562 0.25 0.343 0.364 0.022 0.5 10 6040 430 0.25-5 0.02
NPB5T 0.3125 0.75 0.281 0.375 0.419 0.032 0.562 10 8750 700 1-8 0.03
NPB6T 0.375 0.8125 0.312 0.406 0.475 0.032 0.656 9 10540 1100 1-8 0.04
NPB7T 0.4375 0.9062 0.343 0.437 0.53 0.032 0.687 8 13200 1400 3-12 0.05
NPB8T 0.5 1 0.39 0.5 0.6 0.032 0.781 8 17900 2100 3-12 0.07
NPB9T 0.5625 1.0937 0.437 0.562 0.67 0.032 0.875 8 23200 3680 3-12 0.09
NPB10T 0.625 1.1875 0.5 0.625 0.739 0.032 0.968 8 30500 4720 3-12 0.12
NPB12T 0.75 1.4375 0.593 0.75 0.92 0.044 1.187 8 46400 6750 3-12 0.21
NPB14T 0.875 1.5625 0.703 0.875 0.98 0.044 1.312 8 62200 9350 3-12 0.27
NPB16T 1 1.75 0.797 1 1.118 0.044 1.5 9 82200 12160 3-12 0.39
