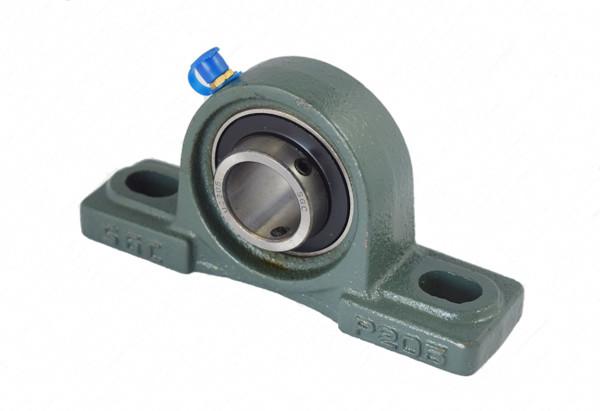

M14 Bolt Standard Duty UCP 300 Cast Iron Pillow Blocks

Product Categories
Fuzhou Zoomland Import and Export Trade Co.,Ltd
Contact Now

M14 Bolt Standard Duty UCP 300 Cast Iron Pillow Blocks

  • 1
  • 2

Brand Name : SGC

Model Number : UCP300

Place of Origin : Fuzhou, China

MOQ : 100 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 100000PCS per month

Delivery Time : 45 days upon receipt of official order

Packaging Details : 1*1 Plastic Bag+Individual Box+Outer Carton+Pallet

Ball Bearing Insert : GCr15 Chrome Steel

Hardness : HRC58-62

Precision Rates : ABEC-1, ABEC-3

Vibration : Z1, Z1V1, Z2V2

Clearance : C0, C2, C3

Shaft Dia : 25mm ~ 140mm, 7/8" ~ 4" Inch

Mounting Block : High Grade Cast Iron

Type : P Type

Color of Block : Green

Oil Nipple : Brass

Package : 1*1 Plastic Bag+Individual Box+Outer Carton

Service : OEM or Customized Drawings is Available

Sample : Free

Contact Now

Anti-Dust Pillow Block Bearings with Two Bolt Holes UCP300

Set Screw Type-Metric, Inch

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..


Unit No.

Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(kg)
(in) (mm) h a e b s2 s1 g w Bi n (mm) (in)
UCP305-14 7/8. 　 45 175 132 45 20 17 15 85 38 15 M14 1/2. UC305-14 P305 0.9
UCP305-15 15/16 　 UC305-15
UCP305-16 1 　 UC305-16
UCP305 　 25 UC305
UCP306-18 1-1/8. 　 50 180 140 50 20 17 18 95 43 17 M14 1/2. UC306-18 P306 1.1
UCP306-19 1-3/16. 　 UC306-19
UCP306 　 30 UC306
UCP307-20 1-1/4. 　 56 210 160 56 25 17 20 106 48 19 M14 1/2. UC307-20 P307 1.95
UCP307-21 1-5/16. 　 UC307-21
UCP307-22 1-3/8. 　 UC307-22
UCP307-23 1-7/16. 　 UC307-23
UCP307 　 35 UC307
UCP308-24 1-1/2. 　 60 220 170 60 27 17 22 116 52 19 M14 1/2. UC308-24 P308 2.2
UCP308-25 1-9/16. 　 UC308-25
UCP308 　 40 UC308
UCP309-26 1-5/8. 　 67 245 190 67 30 20 24 129 57 22 M16 5/8. UC309-26 P309 3.3
UCP309-27 1-11/16. 　 UC309-27
UCP309-28 1-3/4. 　 UC309-28
UCP309 　 45 UC309
UCP310-30 1-7/8. 　 75 275 212 75 35 20 27 143 61 22 M16 5/8. UC310-30 P310 4.8
UCP310-31 1-15/16 　 UC310-31
UCP310 　 50 UC310
UCP311-32 2 　 80 310 236 80 38 20 30 154 66 25 M16 5/8. UC311-32 P311 5.3
UCP311-34 2-1/8. 　 UC311-34
UCP311-35 2-3/16. 　 UC311-35
UCP311 　 55 UC311
UCP312-36 2-1/4. 　 85 330 250 85 38 25 32 165 71 26 M20 3/4. UC312-36 P312 6.3
UCP312-38 2-3/8. 　 UC312-38
UCP312-39 2-7/16. 　 UC312-39
UCP312 　 60 UC312
UCP313-40 2-1/2. 　 90 340 260 90 38 25 33 176 75 30 M20 3/4. UC313-40 P313 8
UCP313 　 65 UC313
UCP314-44 2-3/4. 　 95 360 280 90 40 27 35 187 78 33 M22 7/8. UC314-44 P314 8.3
UCP314 　 70 UC314
UCP315-48 3 　 100 380 290 100 40 27 35 198 82 32 M22 7/8. UC315-48 P315 9.5
UCP315 　 75 UC315
UCP316-50 3-1/8. 　 106 400 300 110 40 27 40 210 86 34 M22 7/8. UC316-50 P316 12.5
UCP316 　 80 UC315
UCP317-52 3-1/4. 　 112 420 320 110 45 33 40 220 96 40 M27 1 UC317-52 P317 14.5
UCP317 　 85 UC317
UCP318-56 3-1/2. 　 118 430 330 110 45 33 45 235 96 40 M27 1 UC318-56 P318 20.4
UCP318 　 90 UC318
UCP319-60 3-3/4. 　 125 470 360 120 50 36 45 250 103 41 M30 1-1/8. UC319-60 P319 22.3
UCP319 　 95 UC319
UCP320-64 4 　 140 490 380 120 50 36 50 275 108 42 M30 1-1/8. UC320-64 P320 25
UCP320 　 100 UC320
UCP321 　 105 140 490 380 120 50 36 50 280 112 44 M30 1-1/8. UC321 P321 24
UCP322 　 110 150 520 400 140 55 40 55 300 117 46 M33 1-1/4. UC322 P322 27.5
UCP324 　 120 160 570 450 140 55 40 65 320 126 51 M33 1-1/4. UC324 P324 32.3
UCP326 　 130 180 600 480 140 55 40 75 355 135 54 M33 1-1/4. UC326 P326 41
UCP328 　 140 200 620 500 140 55 40 75 390 145 59 M33 1-1/4. UC328 P328 50

M14 Bolt Standard Duty UCP 300 Cast Iron Pillow Blocks
M14 Bolt Standard Duty UCP 300 Cast Iron Pillow Blocks
