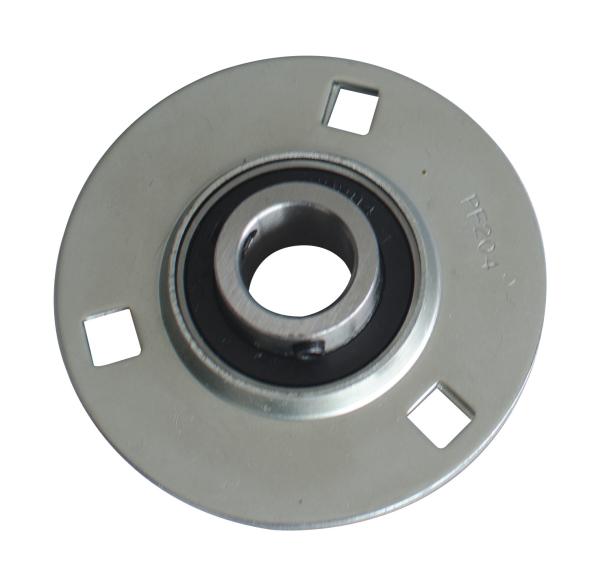

Zinc Plated Pressed SBPF200 housed bearing units

Brand Name : SGC

Model Number : SBPF200

Place of Origin : Fuzhou, China

MOQ : 100 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 100000PCS per month

Delivery Time : 45 days upon receipt of official order

Packaging Details : 1*1 Plastic Bag+Individual Box+Outer Carton+Pallet

Ball Bearing Insert : GCr15 Chrome Steel

Hardness : HRC58-62

Precision Rates : ABEC-1, ABEC-3

Vibration : Z1, Z1V1

Clearance : C0, C2, C3

Shaft Dia : 12mm ~ 35mm, 1/2" ~ 1-7/16" Inch

Mounting Block : Pressed Steel, Zinc Plated

Type : F Type, Pressed Housing

Color of Block : Green

Oil Nipple : Brass

Package : 1*1 Plastic Bag+Individual Box+Outer Carton

Service : OEM or Customized Drawings is Available

Sample : Free

Contact Now

Zinc Plated Bearing Units with Light Weight Pressed Housing for Machines of Low Speed Rotation and Light Load SBPF200

Set Screw Type-Metric, Inch

The pressed housings are with light weight and simple structure and consists of two pieces of presssed steel plates, installing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Pressed Steel Plates
• Light Weight
• Dual Seal Type

Applications:

This type is applied to the machine whose rotating speed is low or medium, or the machine with light load.


Unit No.
Shaft Dia
d
Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(kg)
(in) (mm) a e M t s n Bi (mm) (in)
SBPF201-8 1/2. 　 81 64 7 4 7 6 22 M6 1/4. SB201-8 PF203 0.2
SBPF202-9 9/16. 　 SB202-9
SBPF202-10 5/8. 　 SB202-10
SBPF203-11 11/16. 　 SB203-11
SBPF201 　 12 SB201
SBPF202 　 15 SB202
SBPF203 　 17 SB203
SBPF204-12 3/4. 　 90 71 8 4 9 7 25 M8 5/16. SB204-12 PF204 0.25
SBPF204 　 20 SB204
SBPF205-14 7/8. 　 95 76 9 4 9 7.5 27 M8 5/16. SB205-14 PF205 0.35
SBPF205-15 15/16 　 SB205-15
SBPF205-16 1 　 SB205-16
SBPF205 　 25 SB205
SBPF206-18 1-1/8. 　 113 90 9 5.2 11 8 30 M10 3/8. SB206-18 PF206 0.54
SBPF206-19 1-3/16. 　 SB206-19
SBPF206-20 1-1/4. 　 SB206-20
SBPF206 　 30 SB206
SBPF207-20 1-1/4. 　 122 100 10 5.2 11 8.5 32 M10 3/8. SB207-20 PF207 0.71
SBPF207-22 1-3/8. 　 SB207-22
SBPF207-23 1-7/16. 　 SB207-23
SBPF207 　 35 SB207
