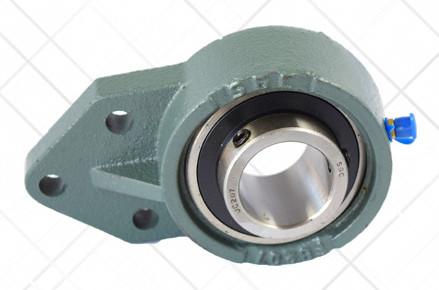

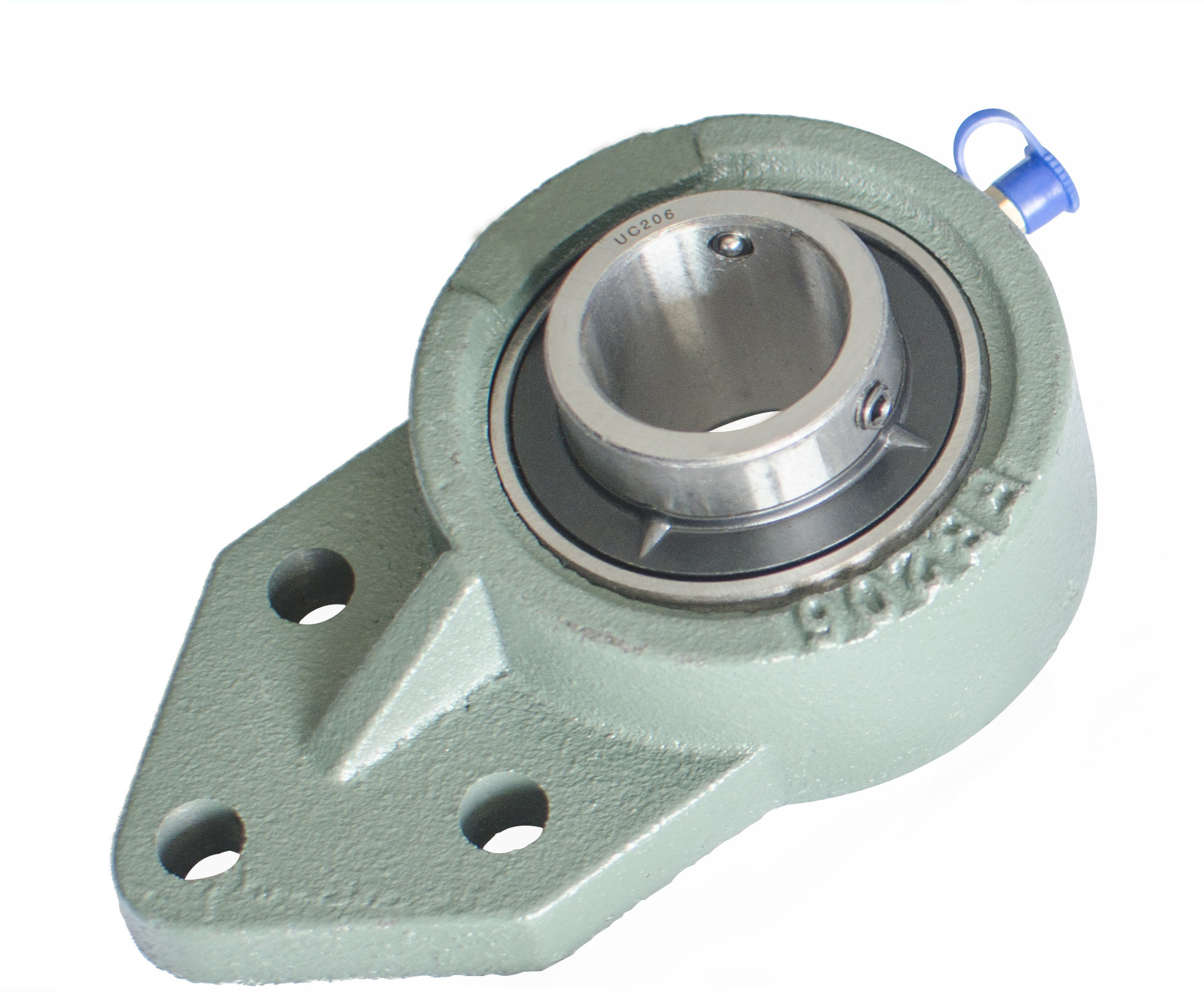

Solid Base M8 Bolt UCFB200 Series Flange Bearing Unit

  • 1
  • 2
  • 3

Brand Name : SGC

Model Number : UCFB200

Place of Origin : Fuzhou, China

MOQ : 100 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 100000PCS per month

Delivery Time : 45 days upon receipt of official order

Packaging Details : 1*1 Plastic Bag+Individual Box+Outer Carton+Pallet

Ball Bearing Insert : GCr15 Chrome Steel

Hardness : HRC58-62

Precision Rates : ABEC-1, ABEC-3

Vibration : Z1, Z1V1, Z2V2

Clearance : C0, C2, C3

Shaft Dia : 12mm~50mm, 1/2" ~ 2" Inch

Mounting Block : High Grade Cast Iron

Type : FB Type

Color of Block : Green

Oil Nipple : Brass

Package : 1*1 Plastic Bag+Individual Box+Outer Carton

Service : OEM or Customized Drawings is Available

Sample : Free

Contact Now

Flange Bracker Units with Three Bolt Holes on One Side for the Mounting Space is Limited UCFB200

Set Screw Type-Metric, Inch

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..


Unit No.
Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass (kg)
(in) (mm) a h e j i g l s b f z Bi n mm in
UCFB201-8 1/2. 　 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16. UC201-8 FB204 0.38
UCFB202-9 9/16. 　 UC202-9
UCFB202-10 5/8. 　 UC202-10
UCFB203-11 11/16. 　 UC203-11
UCFB204-12 3/4. 　 UC204-12
UCFB201 　 12 UC201
UCFB202 　 15 UC202
UCFB203 　 17 UC203
UCFB204 　 20 UC204
UCFB205-13 13/16 　 121 46 41.3 28.5 16.7 9.5 28.5 10 70 63.5 36.5 34 14.3 M8 5/16. UC205-13 FB205 0.49
UCFB205-14 7/8. 　 UC205-14
UCFB205-15 15/16 　 UC205-15
UCFB205-16 1 　 UC205-16
UCFB205 　 25 UC205
UCFB206-17 1-1/16. 　 137 52.4 47.6 31.7 18.6 9.5 32 10 83 70 40.9 38.1 15.9 M8 5/16. UC206-17 FB206 0.61
UCFB206-18 1-1/8. 　 UC206-18
UCFB206-19 1-3/16. 　 UC206-19
UCFB206-20 1-1/4. 　 UC206-20
UCFB206 　 30 UC206
UCFB207-20 1-1/4. 　 156 60.3 50.8 31.7 21 12.7 36.5 13 95 83 46.4 42.9 17.5 M10 3/8. UC207-20 FB207 0.75
UCFB207-21 1-5/16. 　 UC207-21
UCFB207-22 1-3/8. 　 UC207-22
UCFB207-23 1-7/16. 　 UC207-23
UCFB207 　 35 UC207
UCFB208-24 1-1/2. 　 164 60.3 50 41.3 21 15.9 35.7 12 100 78 51.2 49.2 19 M10 3/8. UC208-24 FB208 0.8
UCFB208-25 1-9/16. 　 UC208-25
UCFB208 　 40 UC208
UCFB209-26 1-5/8. 　 174 65 54 42.9 21.8 18.3 38 12 106 80 51.2 49.2 19 M10 3/8. UC209-26 FB209 1.5
UCFB209-27 1-11/16. 　 UC209-27
UCFB209-28 1-3/4. 　 UC209-28
UCFB209 　 45 UC209
UCFB210-29 1-13/16 　 190 74.6 70 41.3 21.8 12.7 38 13 118 102 53.6 51.6 19 M10 3/8. UC210-29 FB210 1.8
UCFB210-30 1-7/8. 　 UC210-30
UCFB210-31 1-15/16 　 UC210-31
UCFB210-32 2 　 UC210-32
UCFB210 　 50 UC210

Solid Base M8 Bolt UCFB200 Series Flange Bearing UnitSolid Base M8 Bolt UCFB200 Series Flange Bearing Unit
