Brand Name : SGC
Model Number : SS6707-2RSC
Certification : RoHS
Place of Origin : Fuzhou, China
MOQ : 1000 PCS
Price : Get The Latest Price
Payment Terms : D/P, L/C, T/T, Western Union
Supply Ability : 50000PCS per month
Delivery Time : 45 days upon receipt of official order
Packaging Details : plastic tube+box, or according to requested by clients
Races : Stainless Steel AISI440C
Balls : Si3N4
Cage : 304 stainless steel
Seals : Light Contact Rubber Seals
Accuracy : ABEC-1, ABEC-3
Vibration : Z1
Radial Play : C0
Bore size : 35 mm
Outside diameter : 44 mm
Lubrication : Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc.
Feature : Long Life,low Noise, High speed
Package : Industrial packing or as per requirement
Product name : S6707-2RS Hybrid Ceramic Bearing
SS6707-2RSC Ceramic Bearing Thin Section Grooved Ball Bearings with Light Contact Rubber Seals
Thin Section Type - Light Contac
Specifications: 35*44*5mm
Races: AISI440C
Balls: Si3N4 Ceramic Balls, 25pcs
Retainer: Nylon
Precision Grade: ABEC-1
Bearing No. | Boundary Dimensions(mm) | |||
d(mm) | D(mm) | B(mm) | Chamfer rsmin(mm) | |
SS6700 | 10 | 15 | 3 | 0.1 |
SS6700 ZZ | 10 | 15 | 4 | 0.1 |
SS6701 | 12 | 18 | 4 | 0.2 |
SS6702 | 15 | 21 | 4 | 0.2 |
SS6703 | 17 | 23 | 4 | 0.2 |
SS6704 | 20 | 27 | 4 | 0.2 |
SS6705 | 25 | 32 | 4 | 0.2 |
SS6706 | 30 | 37 | 4 | 0.2 |
SS6707 | 35 | 44 | 5 | 0.3 |
SS6708 | 40 | 50 | 6 | 0.3 |
SS6709 | 45 | 55 | 6 | 0.3 |
SS6710 | 50 | 62 | 6 | 0.3 |
SS6711 | 55 | 68 | 7 | 0.3 |
SS6712 | 60 | 75 | 7 | 0.3 |
![]() |

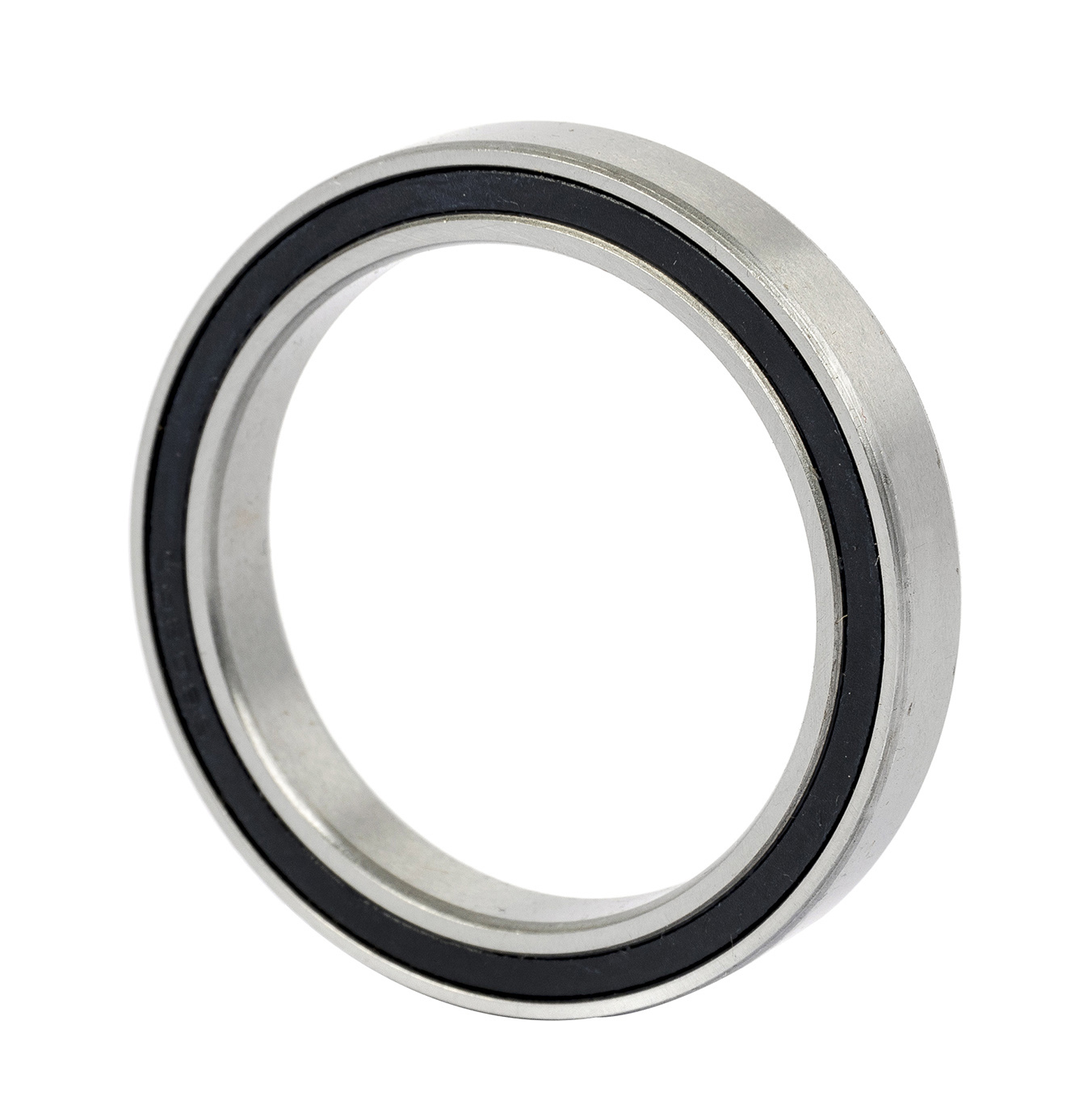

ABEC 1 Grooved Ball Bearings Images |
