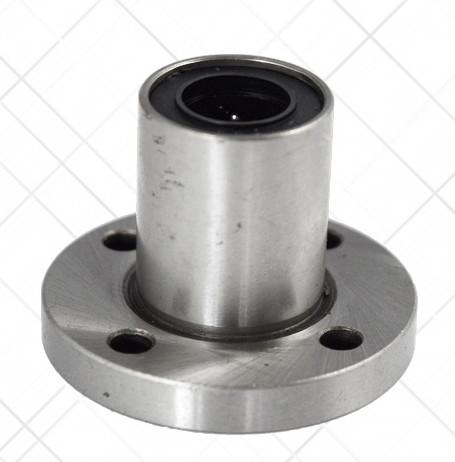

GCr15 Chrome Steel 150mm LMF Flanged Linear Bushing

Brand Name : SGC

Model Number : LMF...UU

Place of Origin : Fuzhou, China

MOQ : 10 PCS

Price : Get the latest price

Payment Terms : D/P, L/C, T/T, Western Union

Supply Ability : 100000PCS per month

Delivery Time : 30 days

Packaging Details : 1*1 Plastic+Individual Box+Outer Carton+Pallet

Product Name : Linear Motion Ball Bearing

Type : Linear

Shell : GCr15 Chrome Steel, Hardened, Precision Ground

Cage : Nylon

Balls : GCr15 Chrome Steel, Hardened ,Precision Ground

Hardeness : HRC60-65

Features : Closed Type

Shaft Dia : 6mm-100mm

Outer Dia. : 12mm-150mm

Length : 19mm-175mm

Packing : 1*1 Plastic bag+Individual box+ Outer Carton

Service : OEM or Customized Service

Sample : Free

Applications : Industrial Equipment, Sport Goods, Medical Equipment, 3D Printer, Food Processing Equipment

Contact Now

Flange Linear Bearing with Round Flange Linear Guide Bearing LMF Series

Closed Type-Metric

Linear motion is the most basic of all motion. Linear ball bearings provide linear movement in one direction.
A roller bearing, carries a load by placing rolling balls or rollers between two bearing rings called races. These bearings are comprised of an outer ring and several rows of balls retained by cages. Roller bearings are manufactured in two styles: ball slides and roller slides.

• GCr15 Chrome Steel

• Nylon Retainer

• LMF...UU

Applications:

The linear bearing is applying for electronic equipment, tensile testing machine and digital 3D coordinate measuring equipment, automatic punching machine, 3D printer, card sorting machine, Medical Equipment, food processing Machinery, etc..
